On va quand même pas tout faire tout seul ?
Estimated time to read: 2 minutes
La communauté
Grafana met à disposition des utilisateurs le site Grafana Dashboards qui regroupe des dashboards partagés par la communauté. Il est possible de les importer directement dans Grafana.
Il est possible de faire l'import soit directement au format JSON, soit en indiquant l'ID du dashboard qui est affiché sur le site de Grafana.
Les imports JSON

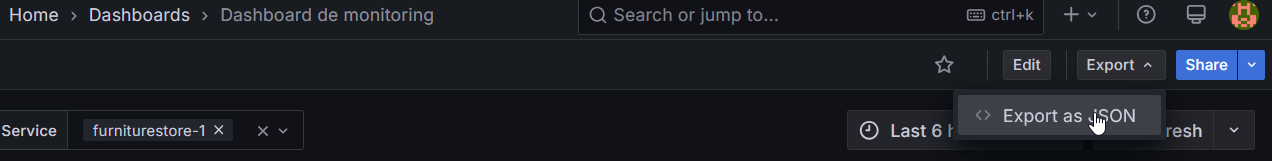

Pour exporter un de vos dashboards, il suffit de cliquer sur le bouton Export as JSON dans le menu Export du dashboard.

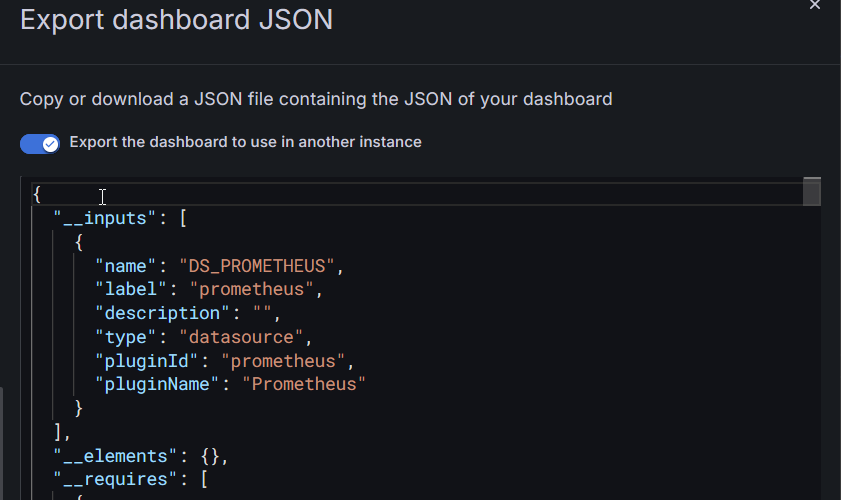

Le bouton Export the dashboard to use in another instance permet de créer une zone input qui, lors de l'import du dashboard, va permettre de choisir les sources de données à utiliser pour le dashboard.
Cela permet de ne pas hardcoder les noms des datasources dans le JSON du dashboard mais de tout de même spécifier le type de datasource à utiliser.

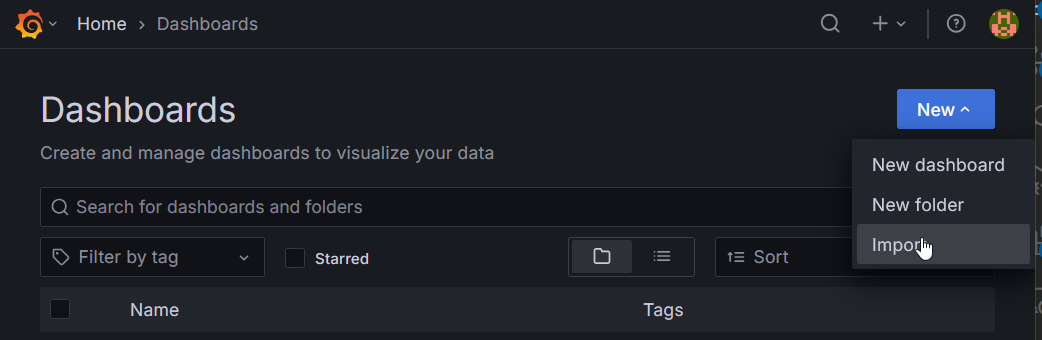

Ici, lors de l'import, un formulaire est présenté pour choisir une datasource de type Prometheus.
Importez les dashboards suivants
On vous a préparé quelques dashboards exemples :
DashBoardMonitoring.json
{
"__inputs": [
{
"name": "DS_PROMETHEUS",
"label": "prometheus",
"description": "",
"type": "datasource",
"pluginId": "prometheus",
"pluginName": "Prometheus"
}
],
"__elements": {},
"__requires": [
{
"type": "grafana",
"id": "grafana",
"name": "Grafana",
"version": "11.6.0"
},
{
"type": "datasource",
"id": "prometheus",
"name": "Prometheus",
"version": "1.0.0"
},
{
"type": "panel",
"id": "timeseries",
"name": "Time series",
"version": ""
}
],
"annotations": {
"list": [
{
"builtIn": 1,
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"enable": true,
"hide": true,
"iconColor": "rgba(0, 211, 255, 1)",
"name": "Annotations & Alerts",
"target": {
"limit": 100,
"matchAny": false,
"tags": [],
"type": "dashboard"
},
"type": "dashboard"
}
]
},
"editable": true,
"fiscalYearStartMonth": 0,
"graphTooltip": 0,
"id": null,
"links": [],
"panels": [
{
"collapsed": false,
"gridPos": {
"h": 1,
"w": 24,
"x": 0,
"y": 0
},
"id": 4,
"panels": [],
"title": "Row title",
"type": "row"
},
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green"
},
{
"color": "red",
"value": 80
}
]
},
"unit": "decbytes"
},
"overrides": []
},
"gridPos": {
"h": 8,
"w": 10,
"x": 0,
"y": 1
},
"id": 1,
"options": {
"legend": {
"calcs": [
"min",
"max"
],
"displayMode": "table",
"placement": "right",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "11.6.0",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"disableTextWrap": false,
"editorMode": "builder",
"exemplar": false,
"expr": "jvm_memory_used_bytes{service_name=\"lumbercamp\", jvm_memory_pool_name=\"Metaspace\"}",
"format": "time_series",
"fullMetaSearch": false,
"includeNullMetadata": true,
"instant": false,
"interval": "",
"legendFormat": "{{jvm_memory_type}}",
"range": true,
"refId": "A",
"useBackend": false
},
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"disableTextWrap": false,
"editorMode": "builder",
"exemplar": false,
"expr": "sum(jvm_memory_used_bytes{service_name=\"lumbercamp\", jvm_memory_type=\"heap\"})",
"format": "time_series",
"fullMetaSearch": false,
"hide": false,
"includeNullMetadata": true,
"instant": false,
"interval": "",
"legendFormat": "heap",
"range": true,
"refId": "C",
"useBackend": false
}
],
"title": "Memory Usage Lumbercamp",
"type": "timeseries"
},
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green"
},
{
"color": "red",
"value": 80
}
]
},
"unit": "s"
},
"overrides": []
},
"gridPos": {
"h": 8,
"w": 14,
"x": 10,
"y": 1
},
"id": 3,
"options": {
"legend": {
"calcs": [
"min",
"max"
],
"displayMode": "table",
"placement": "right",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "multi",
"sort": "none"
}
},
"pluginVersion": "11.6.0",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"disableTextWrap": false,
"editorMode": "code",
"exemplar": false,
"expr": "rate(jvm_cpu_time_seconds_total{service_name=\"lumbercamp\"}[1m])",
"format": "time_series",
"fullMetaSearch": false,
"includeNullMetadata": true,
"instant": false,
"interval": "",
"legendFormat": "CPU top 1m",
"range": true,
"refId": "A",
"useBackend": false
},
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"disableTextWrap": false,
"editorMode": "code",
"exemplar": false,
"expr": "rate(jvm_cpu_time_seconds_total{service_name=\"lumbercamp\"}[5m])",
"format": "time_series",
"fullMetaSearch": false,
"hide": false,
"includeNullMetadata": true,
"instant": false,
"interval": "",
"legendFormat": "CPU top 5m",
"range": true,
"refId": "B",
"useBackend": false
},
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"disableTextWrap": false,
"editorMode": "code",
"exemplar": false,
"expr": "rate(jvm_cpu_time_seconds_total{service_name=\"lumbercamp\"}[15m])",
"format": "time_series",
"fullMetaSearch": false,
"hide": false,
"includeNullMetadata": true,
"instant": false,
"interval": "",
"legendFormat": "CPU top 5m",
"range": true,
"refId": "C",
"useBackend": false
}
],
"title": "CPU Usage Lumbercamp",
"type": "timeseries"
},
{
"collapsed": false,
"gridPos": {
"h": 1,
"w": 24,
"x": 0,
"y": 9
},
"id": 2,
"panels": [],
"repeat": "service_name",
"title": "${service_name}",
"type": "row"
},
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green"
},
{
"color": "red",
"value": 80
}
]
},
"unit": "decbytes"
},
"overrides": []
},
"gridPos": {
"h": 8,
"w": 10,
"x": 0,
"y": 10
},
"id": 7,
"options": {
"legend": {
"calcs": [
"min",
"max"
],
"displayMode": "table",
"placement": "right",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "11.6.0",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"disableTextWrap": false,
"editorMode": "builder",
"exemplar": false,
"expr": "jvm_memory_used_bytes{service_name=\"$service_name\", jvm_memory_pool_name=\"Metaspace\"}",
"format": "time_series",
"fullMetaSearch": false,
"includeNullMetadata": true,
"instant": false,
"interval": "",
"legendFormat": "{{jvm_memory_type}}",
"range": true,
"refId": "A",
"useBackend": false
},
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"disableTextWrap": false,
"editorMode": "builder",
"exemplar": false,
"expr": "sum(jvm_memory_used_bytes{service_name=\"$service_name\", jvm_memory_type=\"heap\"})",
"format": "time_series",
"fullMetaSearch": false,
"hide": false,
"includeNullMetadata": true,
"instant": false,
"interval": "",
"legendFormat": "heap",
"range": true,
"refId": "C",
"useBackend": false
}
],
"title": "Memory Usage ${service_name}",
"type": "timeseries"
},
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green"
},
{
"color": "red",
"value": 80
}
]
},
"unit": "s"
},
"overrides": []
},
"gridPos": {
"h": 8,
"w": 14,
"x": 10,
"y": 10
},
"id": 6,
"options": {
"legend": {
"calcs": [
"min",
"max"
],
"displayMode": "table",
"placement": "right",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "multi",
"sort": "none"
}
},
"pluginVersion": "11.6.0",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"disableTextWrap": false,
"editorMode": "code",
"exemplar": false,
"expr": "rate(jvm_cpu_time_seconds_total{service_name=\"${service_name}\"}[1m])",
"format": "time_series",
"fullMetaSearch": false,
"includeNullMetadata": true,
"instant": false,
"interval": "",
"legendFormat": "CPU top 1m",
"range": true,
"refId": "A",
"useBackend": false
},
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"disableTextWrap": false,
"editorMode": "code",
"exemplar": false,
"expr": "rate(jvm_cpu_time_seconds_total{service_name=\"${service_name}\"}[5m])",
"format": "time_series",
"fullMetaSearch": false,
"hide": false,
"includeNullMetadata": true,
"instant": false,
"interval": "",
"legendFormat": "CPU top 5m",
"range": true,
"refId": "B",
"useBackend": false
},
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"disableTextWrap": false,
"editorMode": "code",
"exemplar": false,
"expr": "rate(jvm_cpu_time_seconds_total{service_name=\"${service_name}\"}[15m])",
"format": "time_series",
"fullMetaSearch": false,
"hide": false,
"includeNullMetadata": true,
"instant": false,
"interval": "",
"legendFormat": "CPU top 5m",
"range": true,
"refId": "C",
"useBackend": false
}
],
"title": "CPU Usage ${service_name}",
"type": "timeseries"
}
],
"schemaVersion": 41,
"tags": [],
"templating": {
"list": [
{
"current": {},
"definition": "label_values(jvm_cpu_count,service_name)",
"includeAll": false,
"label": "Service",
"multi": true,
"name": "service_name",
"options": [],
"query": {
"qryType": 1,
"query": "label_values(jvm_cpu_count,service_name)",
"refId": "PrometheusVariableQueryEditor-VariableQuery"
},
"refresh": 1,
"regex": "",
"type": "query"
}
]
},
"time": {
"from": "now-6h",
"to": "now"
},
"timepicker": {},
"timezone": "browser",
"title": "Dashboard de monitoring",
"uid": "aeanhk9oqs7skxsc",
"version": 1,
"weekStart": ""
}
Perf DB.json
{
"__inputs": [
{
"name": "DS_PROMETHEUS",
"label": "prometheus",
"description": "",
"type": "datasource",
"pluginId": "prometheus",
"pluginName": "Prometheus"
}
],
"__elements": {},
"__requires": [
{
"type": "panel",
"id": "bargauge",
"name": "Bar gauge",
"version": ""
},
{
"type": "grafana",
"id": "grafana",
"name": "Grafana",
"version": "11.6.0"
},
{
"type": "panel",
"id": "piechart",
"name": "Pie chart",
"version": ""
},
{
"type": "datasource",
"id": "prometheus",
"name": "Prometheus",
"version": "1.0.0"
}
],
"annotations": {
"list": [
{
"builtIn": 1,
"datasource": {
"type": "datasource",
"uid": "grafana"
},
"enable": true,
"hide": true,
"iconColor": "rgba(0, 211, 255, 1)",
"name": "Annotations & Alerts",
"target": {
"limit": 100,
"matchAny": false,
"tags": [],
"type": "dashboard"
},
"type": "dashboard"
}
]
},
"description": "Observe Spring Boot application with three pillars of observability: Traces (Tempo), Metrics (Prometheus), Logs (Loki) on Grafana through OpenTelemetry and OpenMetrics.",
"editable": true,
"fiscalYearStartMonth": 0,
"graphTooltip": 0,
"id": null,
"links": [],
"panels": [
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
}
},
"mappings": [],
"unit": "short"
},
"overrides": []
},
"gridPos": {
"h": 9,
"w": 9,
"x": 0,
"y": 0
},
"id": 16,
"options": {
"displayLabels": [
"percent"
],
"legend": {
"displayMode": "list",
"placement": "right",
"showLegend": false,
"values": []
},
"pieType": "pie",
"reduceOptions": {
"calcs": [
"range"
],
"fields": "",
"values": false
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "11.6.0",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"editorMode": "code",
"exemplar": false,
"expr": "sum by(service_name, db_sql_table ) (traces_span_metrics_duration_milliseconds_sum{service_name=\"$app_name\", db_sql_table=~\"$db_sql_table\"})",
"instant": false,
"interval": "",
"legendFormat": "{{db_sql_table}}",
"range": true,
"refId": "A"
}
],
"title": "Requests Count",
"type": "piechart"
},
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"fieldConfig": {
"defaults": {
"color": {
"fixedColor": "blue",
"mode": "fixed"
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green"
}
]
},
"unit": "reqps"
},
"overrides": []
},
"gridPos": {
"h": 9,
"w": 15,
"x": 9,
"y": 0
},
"id": 12,
"options": {
"displayMode": "basic",
"legend": {
"calcs": [],
"displayMode": "list",
"placement": "bottom",
"showLegend": false
},
"maxVizHeight": 300,
"minVizHeight": 10,
"minVizWidth": 0,
"namePlacement": "auto",
"orientation": "horizontal",
"reduceOptions": {
"calcs": [
"range"
],
"fields": "",
"values": false
},
"showUnfilled": true,
"sizing": "auto",
"valueMode": "color"
},
"pluginVersion": "11.6.0",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"editorMode": "code",
"exemplar": true,
"expr": "sum by(service_name, db_sql_table) (traces_span_metrics_duration_milliseconds_sum{service_name=\"$app_name\", db_sql_table=~\"$db_sql_table\"})",
"interval": "",
"legendFormat": "{{db_sql_table}}",
"range": true,
"refId": "A"
}
],
"title": "Request Per Sec",
"type": "bargauge"
},
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"fieldConfig": {
"defaults": {
"color": {
"fixedColor": "blue",
"mode": "fixed"
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green"
}
]
},
"unit": "ms"
},
"overrides": []
},
"gridPos": {
"h": 7,
"w": 24,
"x": 0,
"y": 9
},
"id": 6,
"options": {
"displayMode": "basic",
"legend": {
"calcs": [],
"displayMode": "list",
"placement": "bottom",
"showLegend": false
},
"maxVizHeight": 300,
"minVizHeight": 10,
"minVizWidth": 0,
"namePlacement": "auto",
"orientation": "horizontal",
"reduceOptions": {
"calcs": [
"range"
],
"fields": "",
"values": false
},
"showUnfilled": true,
"sizing": "auto",
"valueMode": "color"
},
"pluginVersion": "11.6.0",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"editorMode": "code",
"exemplar": true,
"expr": "sum by(db_sql_table)(traces_span_metrics_duration_milliseconds_sum{service_name=\"$app_name\", db_sql_table=~\"$db_sql_table\"}) / \r\nsum by(db_sql_table)(traces_span_metrics_duration_milliseconds_count{service_name=\"$app_name\", db_sql_table=~\"$db_sql_table\"})",
"interval": "",
"legendFormat": "{{ span_kind}}",
"range": true,
"refId": "A"
}
],
"title": "Requests Average Duration",
"type": "bargauge"
}
],
"refresh": "",
"schemaVersion": 41,
"tags": [],
"templating": {
"list": [
{
"current": {},
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"definition": "label_values(traces_span_metrics_duration_milliseconds_sum{db_sql_table!=\"\"},service_name)",
"includeAll": false,
"label": "Application Name",
"name": "app_name",
"options": [],
"query": {
"qryType": 1,
"query": "label_values(traces_span_metrics_duration_milliseconds_sum{db_sql_table!=\"\"},service_name)",
"refId": "PrometheusVariableQueryEditor-VariableQuery"
},
"refresh": 1,
"regex": "",
"type": "query"
},
{
"current": {},
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"definition": "label_values(traces_span_metrics_duration_milliseconds_sum{service_name=\"$app_name\", db_sql_table!=\"\"},db_sql_table)",
"includeAll": true,
"label": "Table",
"multi": true,
"name": "db_sql_table",
"options": [],
"query": {
"qryType": 1,
"query": "label_values(traces_span_metrics_duration_milliseconds_sum{service_name=\"$app_name\", db_sql_table!=\"\"},db_sql_table)",
"refId": "PrometheusVariableQueryEditor-VariableQuery"
},
"refresh": 1,
"regex": "",
"type": "query"
}
]
},
"time": {
"from": "now-30m",
"to": "now"
},
"timepicker": {},
"timezone": "",
"title": "Perf DB",
"uid": "dLsDQIUnzbazzazeAAazeaa",
"version": 1,
"weekStart": ""
}
Perf Code.json
{
"__inputs": [
{
"name": "DS_PROMETHEUS",
"label": "prometheus",
"description": "",
"type": "datasource",
"pluginId": "prometheus",
"pluginName": "Prometheus"
}
],
"__elements": {},
"__requires": [
{
"type": "panel",
"id": "bargauge",
"name": "Bar gauge",
"version": ""
},
{
"type": "grafana",
"id": "grafana",
"name": "Grafana",
"version": "11.6.0"
},
{
"type": "panel",
"id": "piechart",
"name": "Pie chart",
"version": ""
},
{
"type": "datasource",
"id": "prometheus",
"name": "Prometheus",
"version": "1.0.0"
}
],
"annotations": {
"list": [
{
"builtIn": 1,
"datasource": {
"type": "datasource",
"uid": "grafana"
},
"enable": true,
"hide": true,
"iconColor": "rgba(0, 211, 255, 1)",
"name": "Annotations & Alerts",
"target": {
"limit": 100,
"matchAny": false,
"tags": [],
"type": "dashboard"
},
"type": "dashboard"
}
]
},
"description": "Observe Spring Boot application with three pillars of observability: Traces (Tempo), Metrics (Prometheus), Logs (Loki) on Grafana through OpenTelemetry and OpenMetrics.",
"editable": true,
"fiscalYearStartMonth": 0,
"graphTooltip": 0,
"id": null,
"links": [],
"panels": [
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
}
},
"mappings": [],
"unit": "short"
},
"overrides": []
},
"gridPos": {
"h": 9,
"w": 9,
"x": 0,
"y": 0
},
"id": 16,
"options": {
"displayLabels": [
"percent"
],
"legend": {
"displayMode": "list",
"placement": "right",
"showLegend": false,
"values": []
},
"pieType": "pie",
"reduceOptions": {
"calcs": [
"range"
],
"fields": "",
"values": false
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "11.6.0",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"editorMode": "code",
"exemplar": false,
"expr": "sum by (service_name, code_function) (http_client_request_duration_seconds_count{service_name=\"$app_name\", http_response_status_code=~\"$code_function\"})",
"instant": false,
"interval": "",
"legendFormat": "{{code_function}}",
"range": true,
"refId": "A"
}
],
"title": "Requests Count",
"type": "piechart"
},
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"fieldConfig": {
"defaults": {
"color": {
"fixedColor": "blue",
"mode": "fixed"
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green"
}
]
},
"unit": "reqps"
},
"overrides": []
},
"gridPos": {
"h": 9,
"w": 15,
"x": 9,
"y": 0
},
"id": 12,
"options": {
"displayMode": "basic",
"legend": {
"calcs": [],
"displayMode": "list",
"placement": "bottom",
"showLegend": false
},
"maxVizHeight": 300,
"minVizHeight": 10,
"minVizWidth": 0,
"namePlacement": "auto",
"orientation": "horizontal",
"reduceOptions": {
"calcs": [
"range"
],
"fields": "",
"values": false
},
"showUnfilled": true,
"sizing": "auto",
"valueMode": "color"
},
"pluginVersion": "11.6.0",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"editorMode": "code",
"exemplar": true,
"expr": "sum by (service_name, http_response_status_code) (http_client_request_duration_seconds_count{service_name=\"$app_name\", http_response_status_code=~\"$code_function\"})",
"format": "time_series",
"interval": "",
"legendFormat": "{{http_response_status_code}}",
"range": true,
"refId": "A"
}
],
"title": "Request Per Sec",
"type": "bargauge"
},
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"fieldConfig": {
"defaults": {
"color": {
"fixedColor": "blue",
"mode": "fixed"
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green"
}
]
},
"unit": "ms"
},
"overrides": []
},
"gridPos": {
"h": 7,
"w": 24,
"x": 0,
"y": 9
},
"id": 6,
"options": {
"displayMode": "basic",
"legend": {
"calcs": [],
"displayMode": "list",
"placement": "bottom",
"showLegend": false
},
"maxVizHeight": 300,
"minVizHeight": 10,
"minVizWidth": 0,
"namePlacement": "auto",
"orientation": "horizontal",
"reduceOptions": {
"calcs": [
"range"
],
"fields": "",
"values": false
},
"showUnfilled": true,
"sizing": "auto",
"valueMode": "color"
},
"pluginVersion": "11.6.0",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"editorMode": "code",
"exemplar": true,
"expr": "sum by(http_response_status_code)(http_client_request_duration_seconds_count{service_name=\"$app_name\", http_response_status_code=~\"$code_function\"}) / \r\nsum by(http_response_status_code)(http_client_request_duration_seconds_count{service_name=\"$app_name\", http_response_status_code=~\"$code_function\"})",
"interval": "",
"legendFormat": "{{ span_kind}}",
"range": true,
"refId": "A"
}
],
"title": "Requests Average Duration",
"type": "bargauge"
}
],
"refresh": "",
"schemaVersion": 41,
"tags": [],
"templating": {
"list": [
{
"current": {},
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"definition": "label_values(http_client_request_duration_seconds_count,service_name)",
"includeAll": false,
"label": "Application Name",
"name": "app_name",
"options": [],
"query": {
"qryType": 1,
"query": "label_values(http_client_request_duration_seconds_count,service_name)",
"refId": "PrometheusVariableQueryEditor-VariableQuery"
},
"refresh": 1,
"regex": "",
"type": "query"
},
{
"current": {},
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"definition": "label_values(http_client_request_duration_seconds_count{service_name=\"$app_name\", http_response_status_code!=\"\"},http_response_status_code)",
"description": "http_response_status_code=\"200\"",
"includeAll": true,
"label": "Function",
"multi": true,
"name": "code_function",
"options": [],
"query": {
"qryType": 1,
"query": "label_values(http_client_request_duration_seconds_count{service_name=\"$app_name\", http_response_status_code!=\"\"},http_response_status_code)",
"refId": "PrometheusVariableQueryEditor-VariableQuery"
},
"refresh": 1,
"regex": "",
"type": "query"
}
]
},
"time": {
"from": "now-15m",
"to": "now"
},
"timepicker": {},
"timezone": "",
"title": "Perf Code",
"uid": "dLsDQIUnzbazzazeAAazeaaaa",
"version": 1,
"weekStart": ""
}
Perf API.json
{
"__inputs": [
{
"name": "DS_PROMETHEUS",
"label": "prometheus",
"description": "",
"type": "datasource",
"pluginId": "prometheus",
"pluginName": "Prometheus"
}
],
"__elements": {},
"__requires": [
{
"type": "panel",
"id": "bargauge",
"name": "Bar gauge",
"version": ""
},
{
"type": "grafana",
"id": "grafana",
"name": "Grafana",
"version": "11.6.0"
},
{
"type": "panel",
"id": "piechart",
"name": "Pie chart",
"version": ""
},
{
"type": "datasource",
"id": "prometheus",
"name": "Prometheus",
"version": "1.0.0"
},
{
"type": "panel",
"id": "stat",
"name": "Stat",
"version": ""
}
],
"annotations": {
"list": [
{
"builtIn": 1,
"datasource": {
"type": "datasource",
"uid": "grafana"
},
"enable": true,
"hide": true,
"iconColor": "rgba(0, 211, 255, 1)",
"name": "Annotations & Alerts",
"target": {
"limit": 100,
"matchAny": false,
"tags": [],
"type": "dashboard"
},
"type": "dashboard"
}
]
},
"description": "Observe Spring Boot application with three pillars of observability: Traces (Tempo), Metrics (Prometheus), Logs (Loki) on Grafana through OpenTelemetry and OpenMetrics.",
"editable": true,
"fiscalYearStartMonth": 0,
"graphTooltip": 0,
"id": null,
"links": [],
"panels": [
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
}
},
"mappings": []
},
"overrides": []
},
"gridPos": {
"h": 9,
"w": 9,
"x": 0,
"y": 0
},
"id": 16,
"options": {
"displayLabels": [
"percent"
],
"legend": {
"displayMode": "list",
"placement": "right",
"showLegend": true,
"values": []
},
"pieType": "pie",
"reduceOptions": {
"calcs": [
"range"
],
"fields": "",
"values": false
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "11.6.0",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"editorMode": "code",
"exemplar": false,
"expr": "http_server_request_duration_seconds_count{service_name=\"$app_name\", http_route=~\"$http_route\"}",
"instant": false,
"interval": "",
"legendFormat": "{{http_route}}",
"range": true,
"refId": "A"
}
],
"title": "Requests Count",
"type": "piechart"
},
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"fieldConfig": {
"defaults": {
"color": {
"fixedColor": "blue",
"mode": "fixed"
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green"
}
]
},
"unit": "short"
},
"overrides": []
},
"gridPos": {
"h": 4,
"w": 3,
"x": 9,
"y": 0
},
"id": 4,
"options": {
"colorMode": "value",
"graphMode": "none",
"justifyMode": "auto",
"orientation": "auto",
"percentChangeColorMode": "standard",
"reduceOptions": {
"calcs": [
"range"
],
"fields": "",
"values": false
},
"showPercentChange": false,
"textMode": "auto",
"wideLayout": true
},
"pluginVersion": "11.6.0",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"editorMode": "code",
"exemplar": true,
"expr": "sum(http_server_request_duration_seconds_count{service_name=\"$app_name\", http_route=~\"$http_route\"})",
"interval": "",
"legendFormat": "{{span_kind}}",
"range": true,
"refId": "A"
}
],
"title": "Total Requests",
"type": "stat"
},
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"fieldConfig": {
"defaults": {
"color": {
"fixedColor": "green",
"mode": "fixed"
},
"mappings": [],
"noValue": "0",
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green"
}
]
},
"unit": "short"
},
"overrides": []
},
"gridPos": {
"h": 4,
"w": 3,
"x": 12,
"y": 0
},
"id": 22,
"options": {
"colorMode": "value",
"graphMode": "none",
"justifyMode": "auto",
"orientation": "auto",
"percentChangeColorMode": "standard",
"reduceOptions": {
"calcs": [
"range"
],
"fields": "",
"values": false
},
"showPercentChange": false,
"textMode": "auto",
"wideLayout": true
},
"pluginVersion": "11.6.0",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"editorMode": "code",
"exemplar": true,
"expr": "sum(http_server_request_duration_seconds_count{service_name=\"$app_name\", http_response_status_code=~\"2.*\",http_route=~\"$http_route\"})",
"interval": "",
"legendFormat": "",
"range": true,
"refId": "A"
}
],
"title": "Total OK( 2XX )",
"type": "stat"
},
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "thresholds"
},
"mappings": [],
"noValue": "0",
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green"
},
{
"color": "red",
"value": 1
}
]
},
"unit": "short"
},
"overrides": []
},
"gridPos": {
"h": 4,
"w": 3,
"x": 15,
"y": 0
},
"id": 31,
"options": {
"colorMode": "value",
"graphMode": "area",
"justifyMode": "auto",
"orientation": "auto",
"percentChangeColorMode": "standard",
"reduceOptions": {
"calcs": [
"range"
],
"fields": "",
"values": false
},
"showPercentChange": false,
"textMode": "auto",
"wideLayout": true
},
"pluginVersion": "11.6.0",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"editorMode": "code",
"exemplar": true,
"expr": "sum(http_server_request_duration_seconds_count{service_name=\"$app_name\", http_response_status_code=~\"3.*\",http_route=~\"$http_route\"})",
"interval": "",
"legendFormat": "",
"range": true,
"refId": "A"
}
],
"title": "Total Exceptions ( 3XX )",
"type": "stat"
},
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "thresholds"
},
"mappings": [],
"noValue": "0",
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green"
},
{
"color": "red",
"value": 1
}
]
},
"unit": "short"
},
"overrides": []
},
"gridPos": {
"h": 4,
"w": 3,
"x": 18,
"y": 0
},
"id": 34,
"options": {
"colorMode": "value",
"graphMode": "none",
"justifyMode": "auto",
"orientation": "auto",
"percentChangeColorMode": "standard",
"reduceOptions": {
"calcs": [
"range"
],
"fields": "",
"values": false
},
"showPercentChange": false,
"textMode": "auto",
"wideLayout": true
},
"pluginVersion": "11.6.0",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"editorMode": "code",
"exemplar": true,
"expr": "sum(http_server_request_duration_seconds_count{service_name=\"$app_name\", http_response_status_code=~\"4.*\", http_route=~\"$http_route\"})",
"interval": "",
"legendFormat": "",
"range": true,
"refId": "A"
}
],
"title": "Total Exceptions ( 4XX )",
"type": "stat"
},
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "thresholds"
},
"mappings": [],
"noValue": "0",
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green"
},
{
"color": "dark-red",
"value": 1
}
]
},
"unit": "short"
},
"overrides": []
},
"gridPos": {
"h": 4,
"w": 3,
"x": 21,
"y": 0
},
"id": 32,
"options": {
"colorMode": "value",
"graphMode": "none",
"justifyMode": "auto",
"orientation": "auto",
"percentChangeColorMode": "standard",
"reduceOptions": {
"calcs": [
"range"
],
"fields": "",
"values": false
},
"showPercentChange": false,
"textMode": "auto",
"wideLayout": true
},
"pluginVersion": "11.6.0",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"editorMode": "code",
"exemplar": true,
"expr": "sum(rate(http_server_request_duration_seconds_count{service_name=\"$app_name\", http_response_status_code=~\"5.*\",http_route=~\"$http_route\"}[1m]))",
"interval": "",
"legendFormat": "",
"range": true,
"refId": "A"
}
],
"title": "Total Exceptions ( 5XX )",
"type": "stat"
},
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"fieldConfig": {
"defaults": {
"color": {
"fixedColor": "blue",
"mode": "fixed"
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green"
}
]
},
"unit": "ms"
},
"overrides": []
},
"gridPos": {
"h": 5,
"w": 15,
"x": 9,
"y": 4
},
"id": 6,
"options": {
"displayMode": "basic",
"legend": {
"calcs": [],
"displayMode": "list",
"placement": "bottom",
"showLegend": false
},
"maxVizHeight": 300,
"minVizHeight": 10,
"minVizWidth": 0,
"namePlacement": "auto",
"orientation": "horizontal",
"reduceOptions": {
"calcs": [
"range"
],
"fields": "",
"values": false
},
"showUnfilled": true,
"sizing": "auto",
"valueMode": "color"
},
"pluginVersion": "11.6.0",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"editorMode": "code",
"exemplar": true,
"expr": "sum by(http_route)(http_server_request_duration_seconds_sum{service_name=\"$app_name\", http_route=~\"$http_route\"}) / \r\nsum by(http_route)(http_server_request_duration_seconds_count{service_name=\"$app_name\", http_route=~\"$http_route\"})",
"interval": "",
"legendFormat": "{{ span_kind}}",
"range": true,
"refId": "A"
}
],
"title": "Requests Average Duration",
"type": "bargauge"
},
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"fieldConfig": {
"defaults": {
"color": {
"fixedColor": "green",
"mode": "fixed"
},
"mappings": [],
"thresholds": {
"mode": "percentage",
"steps": [
{
"color": "green"
}
]
},
"unit": "short"
},
"overrides": []
},
"gridPos": {
"h": 5,
"w": 12,
"x": 0,
"y": 9
},
"id": 18,
"options": {
"displayMode": "basic",
"legend": {
"calcs": [],
"displayMode": "list",
"placement": "bottom",
"showLegend": false
},
"maxVizHeight": 300,
"minVizHeight": 10,
"minVizWidth": 0,
"namePlacement": "auto",
"orientation": "horizontal",
"reduceOptions": {
"calcs": [
"range"
],
"fields": "",
"values": false
},
"showUnfilled": true,
"sizing": "auto",
"valueMode": "color"
},
"pluginVersion": "11.6.0",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"editorMode": "code",
"exemplar": true,
"expr": "http_server_request_duration_seconds_count{service_name=\"$app_name\", http_response_status_code=~\"2.*\", http_route=~\"$http_route\"} ",
"interval": "",
"legendFormat": "{{http_route}}",
"range": true,
"refId": "A"
}
],
"title": "Number of 2xx Requests",
"type": "bargauge"
},
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"fieldConfig": {
"defaults": {
"color": {
"fixedColor": "blue",
"mode": "fixed"
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green"
}
]
},
"unit": "none"
},
"overrides": []
},
"gridPos": {
"h": 5,
"w": 12,
"x": 12,
"y": 9
},
"id": 12,
"options": {
"displayMode": "basic",
"legend": {
"calcs": [],
"displayMode": "list",
"placement": "bottom",
"showLegend": false
},
"maxVizHeight": 300,
"minVizHeight": 10,
"minVizWidth": 0,
"namePlacement": "auto",
"orientation": "horizontal",
"reduceOptions": {
"calcs": [
"range"
],
"fields": "",
"values": false
},
"showUnfilled": true,
"sizing": "auto",
"valueMode": "color"
},
"pluginVersion": "11.6.0",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"editorMode": "code",
"exemplar": false,
"expr": "http_server_request_duration_seconds_count{service_name=\"$app_name\", http_route=~\"$http_route\"}",
"instant": false,
"interval": "",
"legendFormat": "{{http_route}}",
"range": true,
"refId": "A"
}
],
"title": "Number of requests",
"type": "bargauge"
},
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"description": "",
"fieldConfig": {
"defaults": {
"color": {
"mode": "continuous-GrYlRd"
},
"mappings": [],
"thresholds": {
"mode": "percentage",
"steps": [
{
"color": "red"
},
{
"color": "#EAB839",
"value": ""
}
]
},
"unit": "short"
},
"overrides": []
},
"gridPos": {
"h": 5,
"w": 24,
"x": 0,
"y": 14
},
"id": 33,
"options": {
"displayMode": "basic",
"legend": {
"calcs": [],
"displayMode": "list",
"placement": "bottom",
"showLegend": false
},
"maxVizHeight": 300,
"minVizHeight": 10,
"minVizWidth": 0,
"namePlacement": "auto",
"orientation": "horizontal",
"reduceOptions": {
"calcs": [
"range"
],
"fields": "",
"values": false
},
"showUnfilled": true,
"sizing": "auto",
"valueMode": "color"
},
"pluginVersion": "11.6.0",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"editorMode": "code",
"exemplar": true,
"expr": "http_server_request_duration_seconds_count{service_name=\"$app_name\", http_response_status_code!~\"2.*\", http_route=~\"$http_route\"} ",
"interval": "",
"legendFormat": "{{ http_route }} ",
"range": true,
"refId": "A"
}
],
"title": "Number of non 2xx Requests",
"type": "bargauge"
}
],
"refresh": "30s",
"schemaVersion": 41,
"tags": [],
"templating": {
"list": [
{
"current": {},
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"definition": "label_values(http_server_request_duration_seconds_count{http_route!=\"\"}, service_name)",
"includeAll": false,
"label": "Application Name",
"name": "app_name",
"options": [],
"query": {
"query": "label_values(http_server_request_duration_seconds_count{http_route!=\"\"}, service_name)",
"refId": "StandardVariableQuery"
},
"refresh": 1,
"regex": "",
"type": "query"
},
{
"current": {},
"datasource": {
"type": "prometheus",
"uid": "${DS_PROMETHEUS}"
},
"definition": "label_values(http_server_request_duration_seconds_count{service_name=\"$app_name\", http_route!=\"\"}, http_route)",
"includeAll": true,
"label": "http_route",
"multi": true,
"name": "http_route",
"options": [],
"query": {
"query": "label_values(http_server_request_duration_seconds_count{service_name=\"$app_name\", http_route!=\"\"}, http_route)",
"refId": "StandardVariableQuery"
},
"refresh": 1,
"regex": "",
"type": "query"
}
]
},
"time": {
"from": "now-5m",
"to": "now"
},
"timepicker": {},
"timezone": "",
"title": "Perf API",
"uid": "bear6lw5niwhse",
"version": 1,
"weekStart": ""
}
Quizz Perf API
Sur le Dashboard Perf API :
Pourquoi la visualization Number of request ne donne pas le meme nombre de requetes Order que sa voisine ?
Et pourquoi y a t'il 2 lignes Order ?

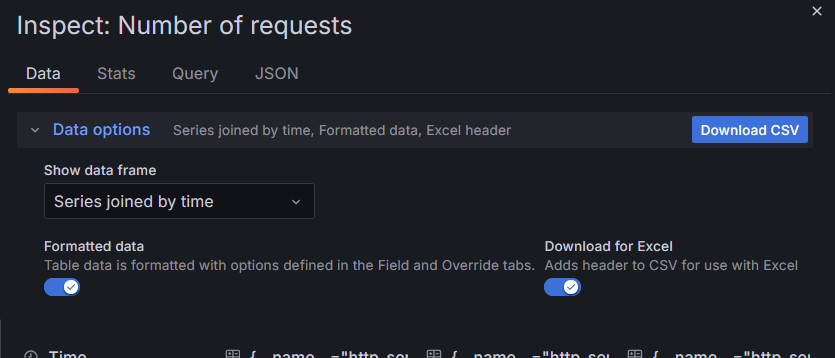

Inspecter les données
Il est possible d'inspecter les données envoyées par Grafana et reçues par la datasource en cliquant sur le bouton Inspect dans le menu du panel. Les exporter en CSV facilite la lecture.
Spoiler la solution est là
Si on regarde les labels retournée on à 2 séries différentes. L'une pour avec le label http_response_status_code="200" et l'autre avec http_response_status_code="418". On a donc 2 séries différentes pour la même requête.
la visualization Number of 2xx Requests filtre pour ne prendre que les requêtes avec le label http_response_status_code=~"2.*".
🛫 Prochaine étape : Otel (aka OpenTelemetry) ➡️
